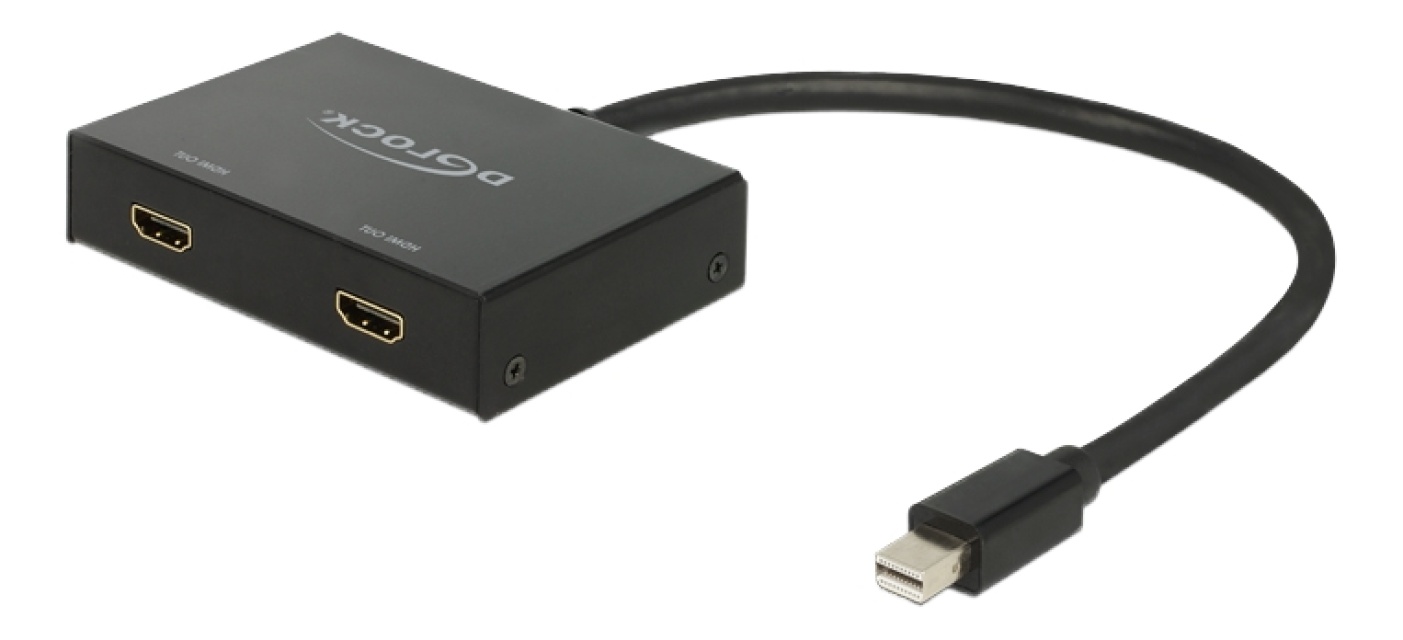

DeLOCK miniDisplayPort-splitter, 1xminiDisplayPort - 2xHDMI, HDCP 1.3, DP 1.2, STDP4320 Chipset, black
This splitter by Delock receives a Displayport signal from your PC or laptop and splits it to two connected displays. Thereby one mini Displayport connection can be used to operate two HDMI monitors.
• Connector:
Input: 1 x mini Displayport 20 pin male
Output: 2 x HDMI-A 19 pin female
• Chipset: STDP4320
• Displayport 1.2a and High Speed HDMI specification
• Active converter, Single / Multi Stream Transport Hub (SST / MST)
• Maximum resolution (depending on the system and the connected hardware):
Displayport 1.1 or 1.2 Single Stream Transport (SST):
up to 1920 x 1080 @ 60 Hz (mirror)
Displayport 1. 2 Multi Stream Transport (MST):
up to 3840 x 2160 @ 30 Hz (mirror or extended)
• Supports 3D displays
• Supports HDCP 1.3
• Supports Eyefinity / Single Large Surface (SLS)
• Audio input formats: 7.1 channel up to 192 kHz sample rate
• Cable length: ca. 30 cm (without connector)
• Metal housing
Dimensions(WxDxH): 100x67x23mm
